Micro-Hydroelectric Turbine Impact Evaluation - Smolt Passage

Smolts require access to the fishway (i.e., the fishway must be open and operational) during their downstream migration.  In our professional opinion, the Maple Hill Dam fishway, Saugeen River, Ontario, should remain open to allow downstream passage of smolts in July/August, particularly as water temperature decreases in the autumn.  It is beneficial to close the fishway to prevent accumulation of debris very early in the spring; however, the fishway should be opened as soon as possible each year, and remain open for as long as possible (i.e., until December).

The benefits of providing downstream passage of fish around the micro-hydro facility may outweigh costs of preventing salmon access to areas upstream from the Maple Hill Dam.

The flashboards at the dam reduce the depth of water flowing over the crest to less than 2 cm in some places.  Based on our professional opinion, the most environmentally beneficial operating protocol would include a notch in the dam crest (deeper than the current narrow weir section) and installation of an adequate plunge pool, so that the power canal can be closed off completely to facilitate downstream movement of fish over the Maple Hill dam during periods of known downstream migration (i.e., July/August when river levels are low).

rainbow trout inside fishway
rainbow trout exiting fishway

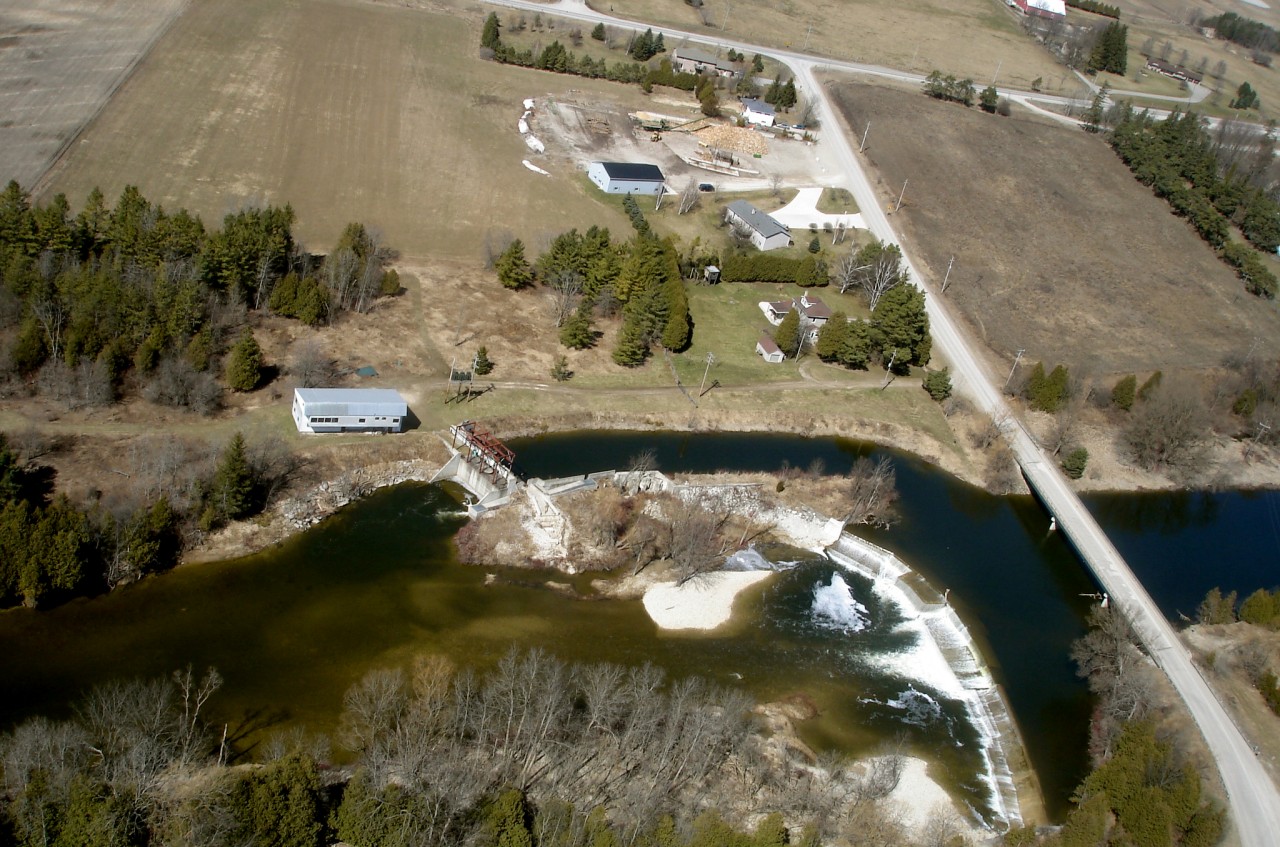

aerial image hydrodam
